Process parameters and technical performance

Main technical description

Maximum production capacity
(kg/time)

150

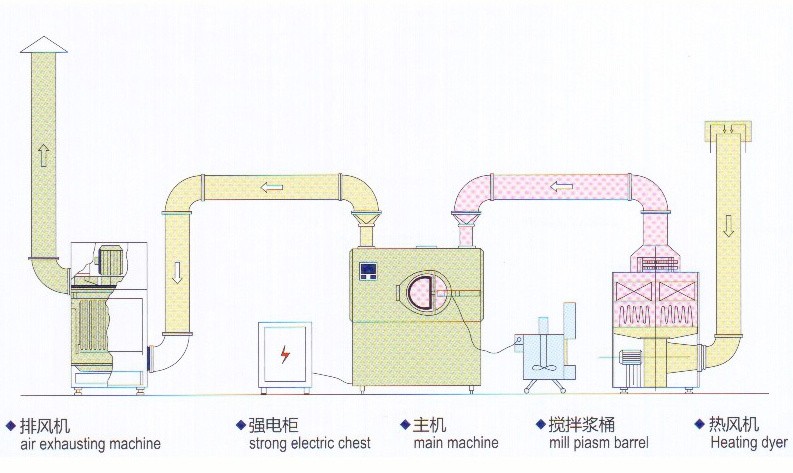

1. Host: PLC man-machine interface, high efficiency and energy saving, no dust, no cross contamination, simple operation, convenient cleaning, low noise and high efficiency. Coated drugs: The coating layer is dry, uniform, firm, dense, flat and smooth.
2. Hot air blower: through, middle and high secondary filtration. The hot air cleanliness level reaches 100,000.
3. Exhaust fan: equipped with anti-vibration and automatic dust removal device.
4. One imported spray gun (Iwata, Japan).
5. Insulation heating mixing barrel
6. dropper
7. Strong electric cabinet
8. Air duct: 10M
9. This equipment complies with "GMP" standard requirements

Coating drum speed
(r/min)

2-18

Main motor power
(kw)

2.2kw

Hot air flow
(m3/h)

1555-2980m3/h

Heater motor power
(kw)

1.5kw

Exhaust fan flow
(m3/h)

5210-7419m3/h

Exhaust fan motor power
(kw)

5.5kw

Compressed air

Pressure>: 0.4mpa Consumption: 0.6m3/min

Electric heating type

Power: 16KW

Steam heating type

Steam consumption (kg/h): 80kg steam pressure>0.6mpa
